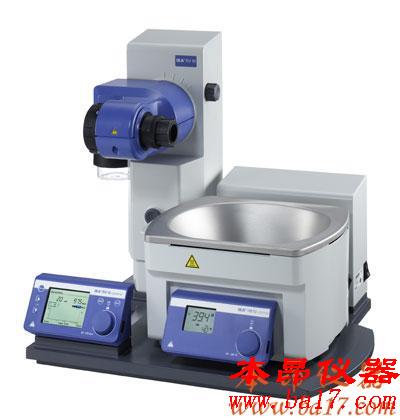

RV 10 control FLEX詳細介紹：
FLEX-ability with the new IKA RV 10 FLEX Packages?
The IKA FLEX Packages enable the customer who requires speciality glassware the FLEX-ability of customizing their glassware setup for their specific application.?
The RV 10 control FLEX Package includes the following components:?
RV 10 control drive, HB 10 control heating bath, RV 10.70 vapor tube NS 29/32, clamps for glassware, woulf bottle?
New: Now RV 10.4002 Magnetic Valve included in delivery?
?
RV 10 control FLEX技術參數(shù)：
冷凝面積?0 cm2
電機原理?直流
速度范圍?20 - 280 rpm
轉動可逆方向?是
升降架?馬達
行程?140 mm
加熱溫度范圍?室溫 - 180 °C
加熱輸出功率?1300 W
加熱溫度控制精確度?1 ±K
浴槽*大容量?3 l
內(nèi)置真空控制器?是
Measurement accuracy +/-?2 mbar
Vacuum adjustment range?1050 - 1 mbar
Vacuum measurement range?1050 - 1 mbar
計時器?是
外形尺寸?500 x 430 x 410 mm
重量?21.5 kg
允許環(huán)境溫度?5 - 40 °C
允許相對濕度?80 %
DIN EN 60529 保護方式?IP 20
RS 232接口?是
電壓?220 - 240 V
頻率?50/60 Hz
儀器輸入功率?1400 W
